01 Pumps
1P PUMPS: Pumps are available in SAE, two & four bolts flanges with parallel, spline & taper shaft
01 Pumps
AGP 09
AGP 12
AGP 16
AGP 20
AGP 23
AGP 27
AGP 32
AGP 40
AGP 40 (Spline Type)
|
Pump type |
Theoritical Displacement |
Nominal Delivery at 1450 rev / min |
Maximum Pressure |
Max speed at max Pressure rev/ min. |
Min. Speed at max Continuous Pressure |
|||
|
in3 / rev |
cm3 / rev |
lmp gal/ min |
l / min |
psi |
bar |
|||

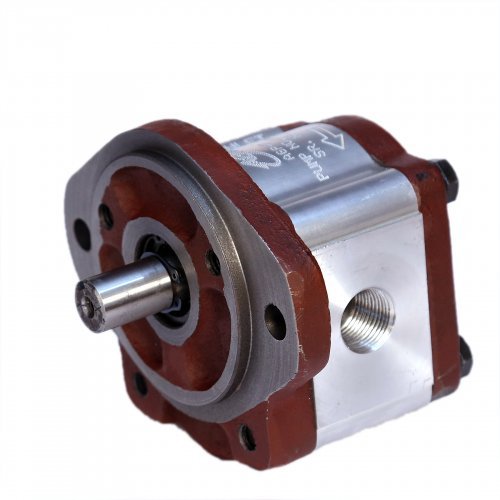

| AGP-07 |
0.31 |
5.14 |
1.70 |
7.70 |
3000 |
207 |
3500 |
500 |
| AGP-09 |
0.43 |
7.03 |
2.00 |
9.10 |
3000 |
207 |
3500 |
500 |
| AGP-12 |
0.58 |
9.46 |
2.80 |
12.70 |
3000 |
207 |
3500 |
500 |
| AGP-16 |
0.73 |
11.90 |
3.60 |
16.40 |
3000 |
207 |
3500 |
600 |
| AGP-20 |
0.88 |
14.33 |
4.40 |
20.00 |
3000 |
207 |
3500 |
500 |
| AGP-23 |
1.02 |
16.77 |
5.20 |
23.60 |
3000 |
207 |
3500 |
600 |
| AGP-27 |
1.17 |
19.22 |
6.00 |
27.30 |
3000 |
207 |
3500 |
650 |

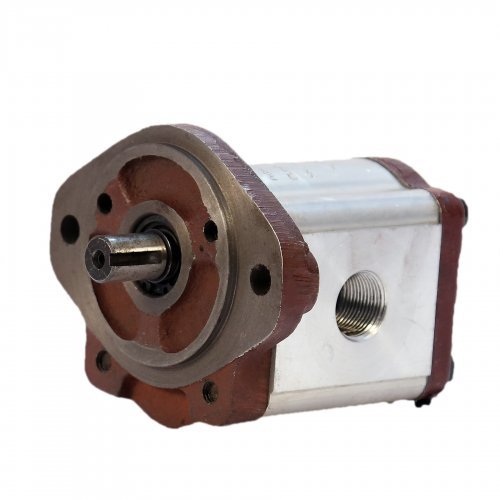

| AGP-32 |
1.40 |
22.84 |
7.20 |
32.70 |
2180 |
150 |
3500 |
650 |

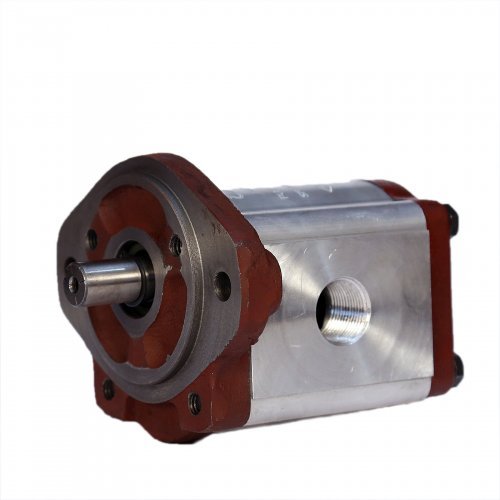

| AGP-40 |
1.72 |
28.12 |
9.00 |
40.90 |
1880 |
130 |
2400 |
650 |
